TYPE W/H - WALL HUNG

This design is the most commonly specified urinal screen and is available in three popular sizes.
12" x 42", 18" x 42" or 24" x 42"

• Continuous wall bracket
• 1-3/4" SQ. x 54" Aluminum Post (mounts to front of screen and floor)

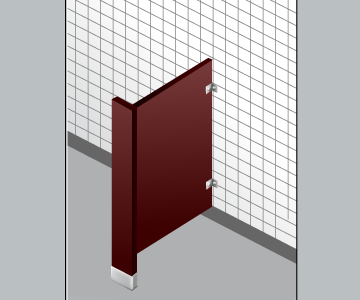

TYPE F/S - FLOOR SUPPORTED

A standard 58" high panel is mounted to floor with a matching finish, heavy duty, 6" x 70" Type F/S pilaster. With 20 stock size panels available, depths ranging between 18" to 78" can easily be achieved. Secure mounting of this style requires a solid concrete floor that allows for a minimum 2" anchor penetration.

(This style is available in Powder Coated Steel, Stainless Steel & Plastic Laminate only)

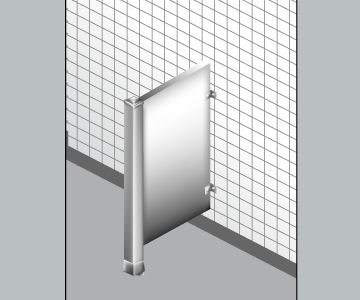

TYPE P/S - POST SUPPORT

This screen uses a standard 58" high panel with a
1-3/4" SQ. x 70" Aluminum Post for mounting to floor. Available in 9 different depths ranging from 18" to 36" (greater depth requires modification).

Optional modification to this design includes:

• Floor and Ceiling mounted 1-3/4" SQ. Aluminum Post

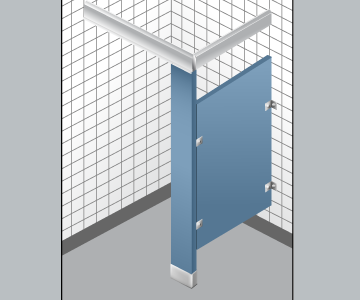

TYPE H/B - HEADRAIL BRACED

This style screen is supplied with a standard 58" high panel, a matching finish 4" x 82" Type H/B pilaster, and the appropriate lengths of aluminum headrail. The combination of a floor anchored pilaster that is also securely anchored with headrail at the back and adjacent walls provides for excellent stability. With 20 stock size panels available, depths ranging between 18" to 78" can be achieved.
